Author Topic: Black Templar's helmet completed  (Read 1862 times)

0 Members and 1 Guest are viewing this topic.

Offline bufoncosmico

  • Initiate
  • *
  • Posts: 5
  • :
  • Neophyte
Black Templar's helmet completed
« on: January 05, 2015, 05:27:55 AM »
Hi everyone, this is my first post here. Not new to pep, but I just finished my very first SM helmet a few days ago and wanted to share my build, hope you like it!

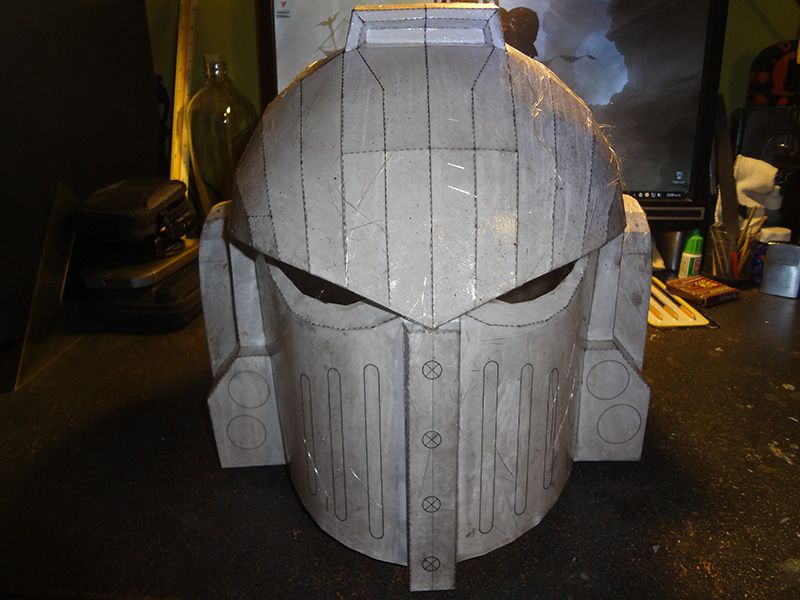

First the pep stage, i decided to make a mark III, so first went the cutting, gluing, resin, fiberglass, bondo, sanding, etc...

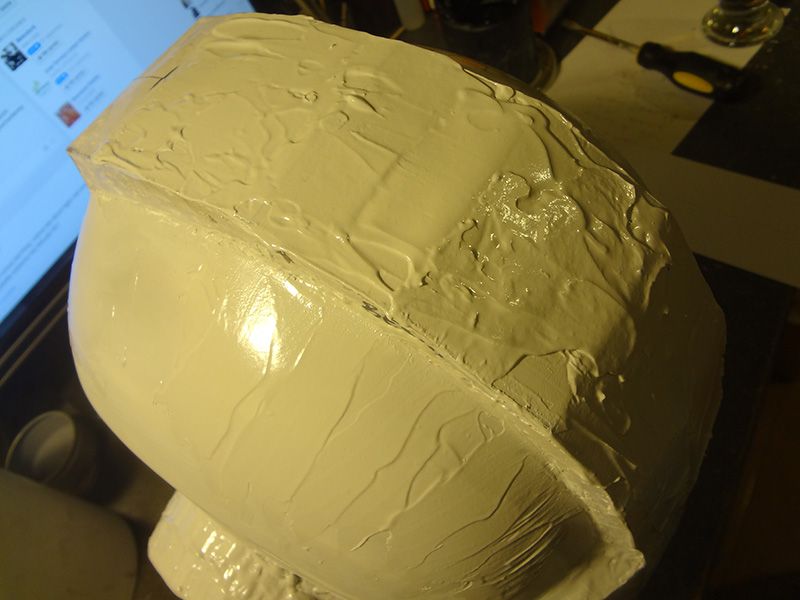

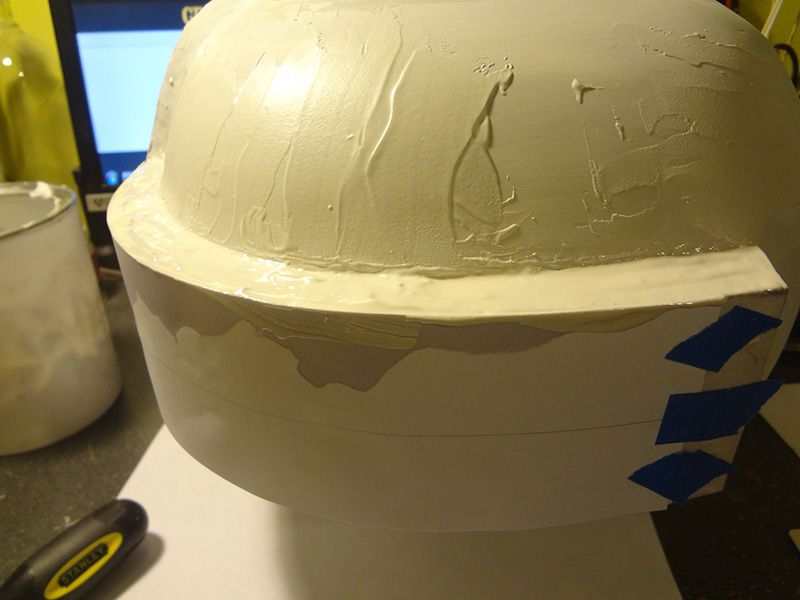

for the crest i didn't' really wanted to apply, sand, apply sand, etc..so i cheated a little; i just put some bondo, lay over a piece of card stock, and poured some rondo to fill the gaps, in the end it worked, it didn't added a lot of weight, and just a very light layer of bondo and that was that. For the faceplate i didn't apply bondo, just resin, and since i liked the texture, i leave it like that and just cut out the vents.

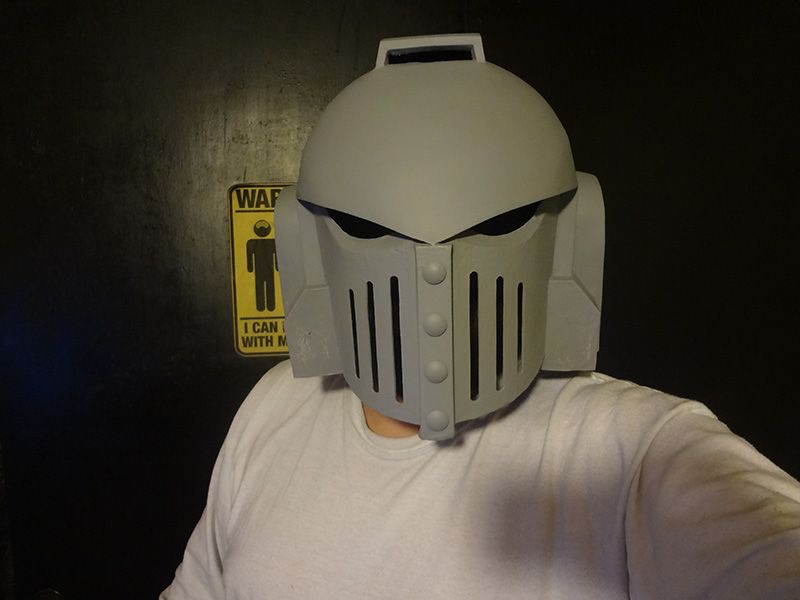

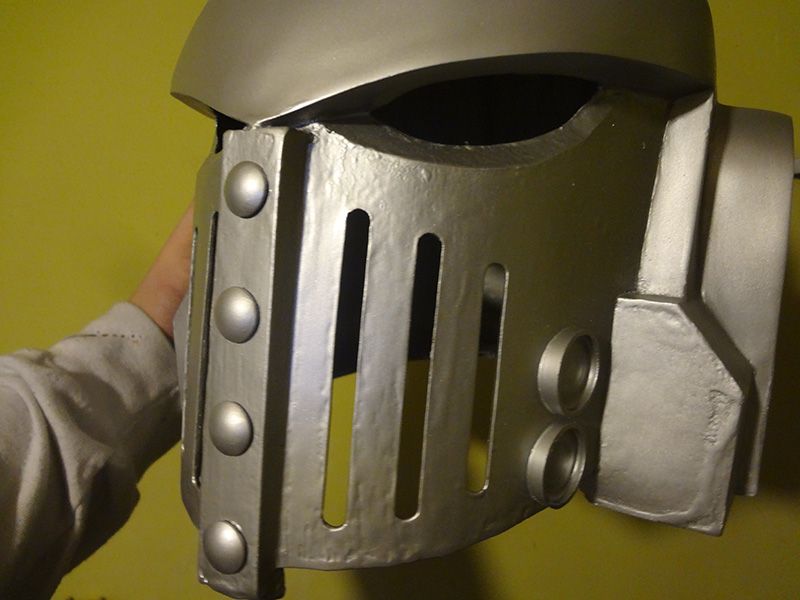

added some rivets that i cut with a dremel, primer, spot putty, sanding, etc, and a few hours later, the obligated test and pic  ;D

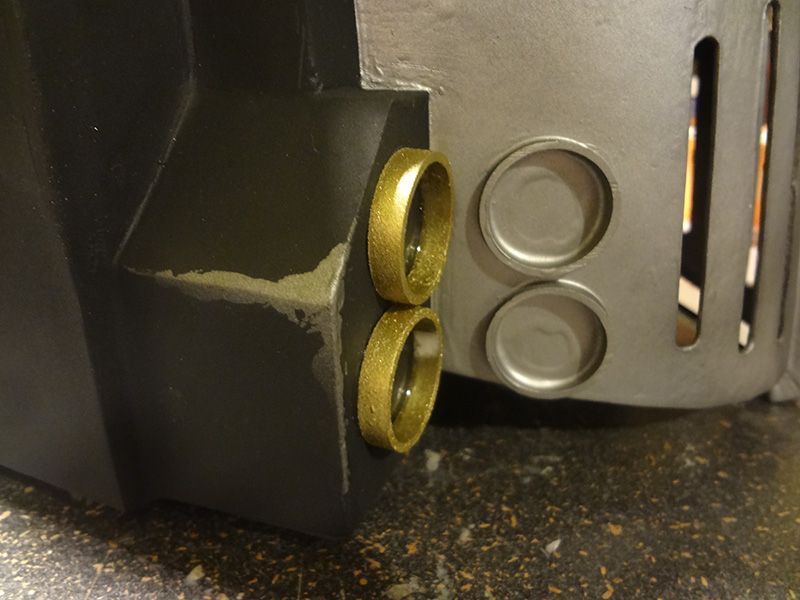

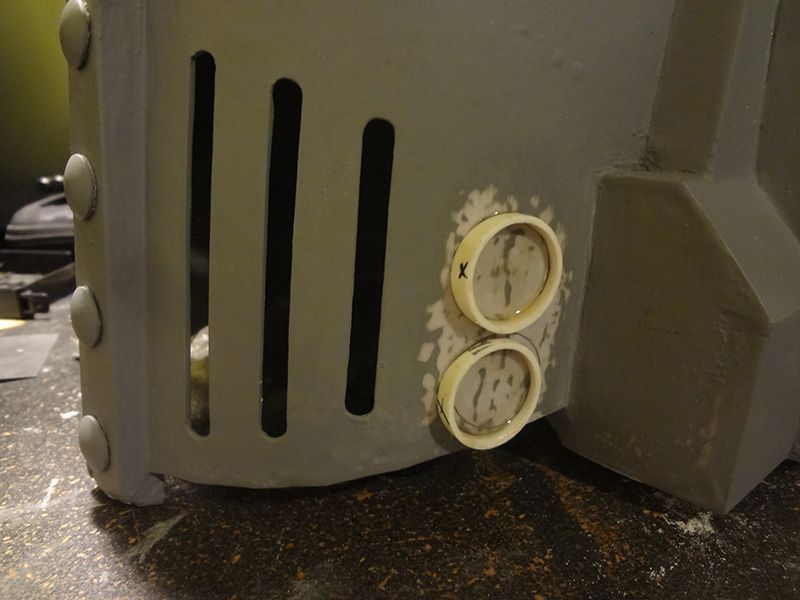

I used pvc pipe for the connectors and painted the lid with aluminum color.

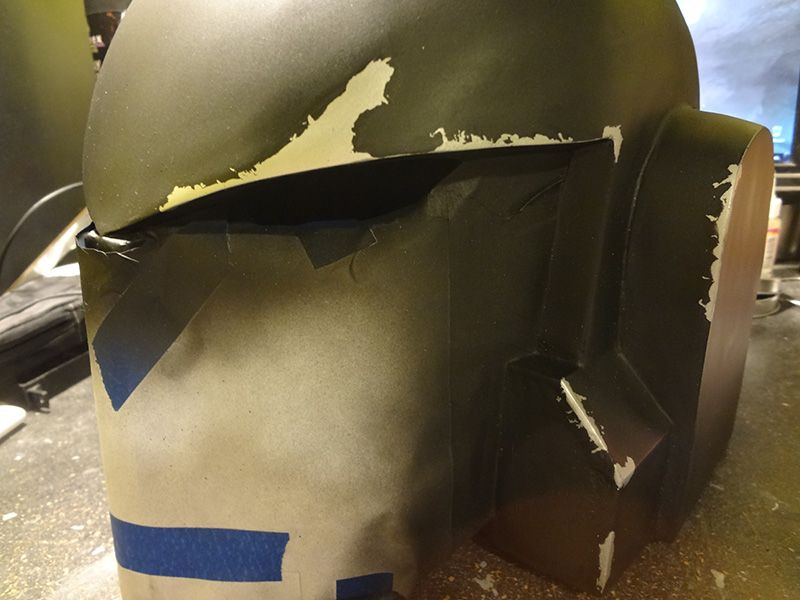

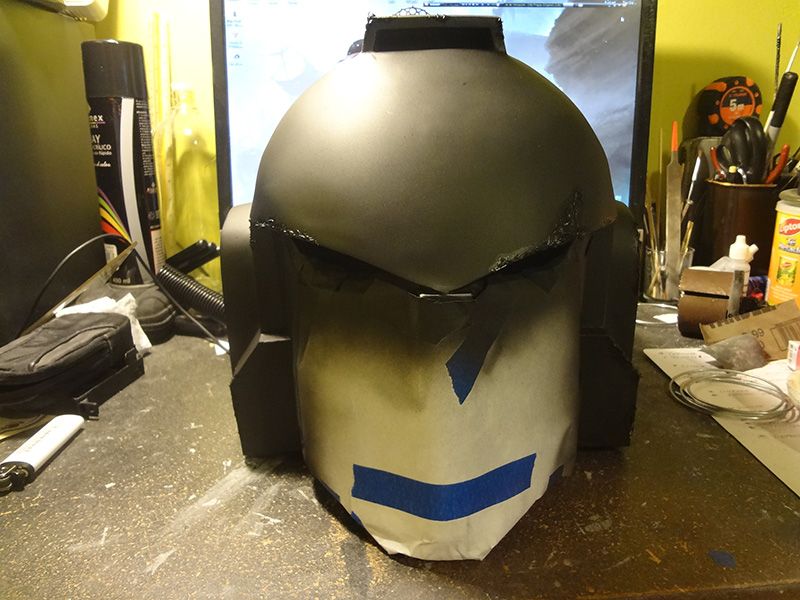

then came the black paint for the rest of the helmet, i used vaseline to make some battle damage, but in the end i cover them, i liked the result though, and I'm going to use it in future builds.

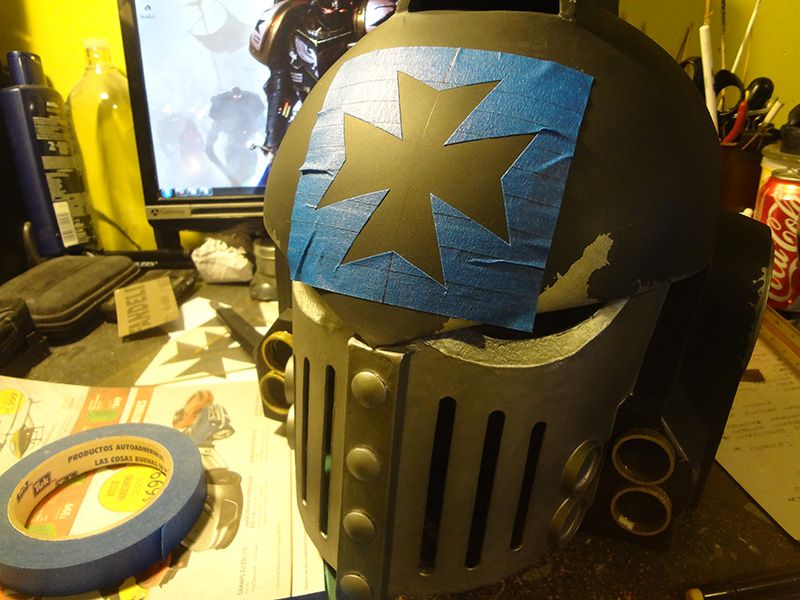

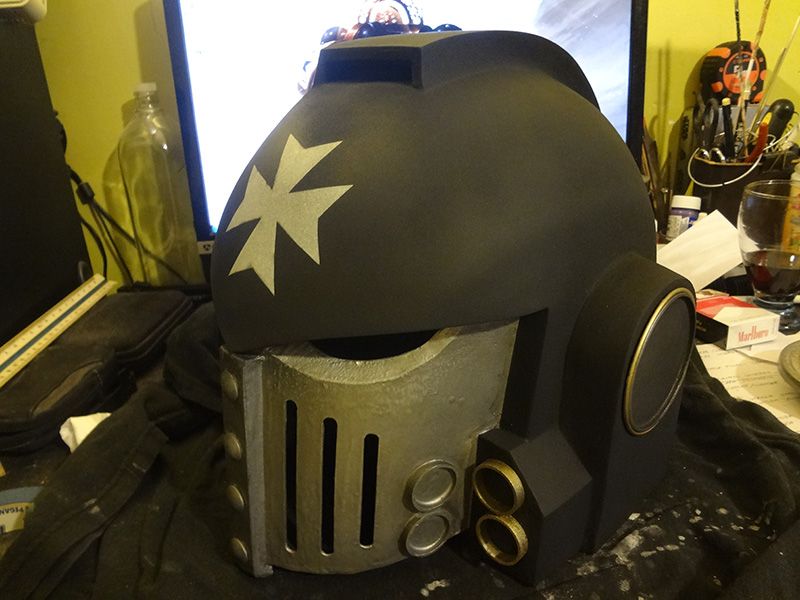

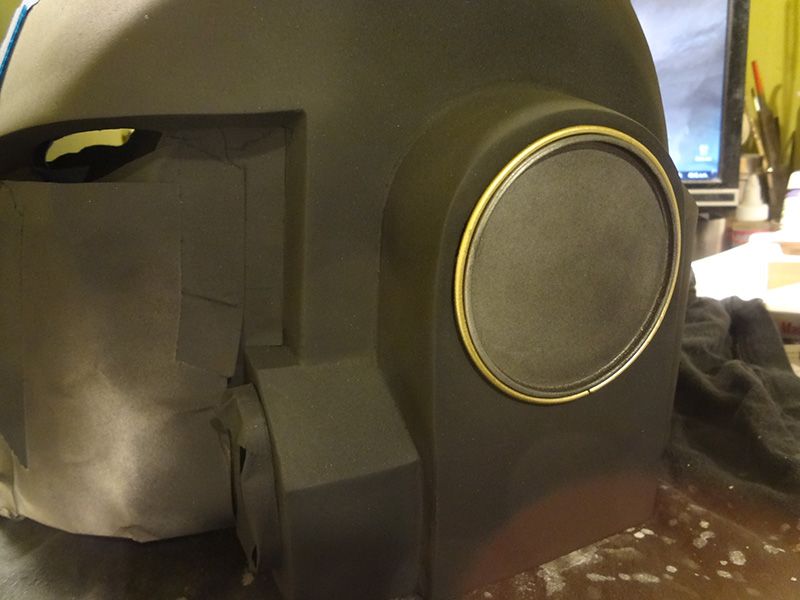

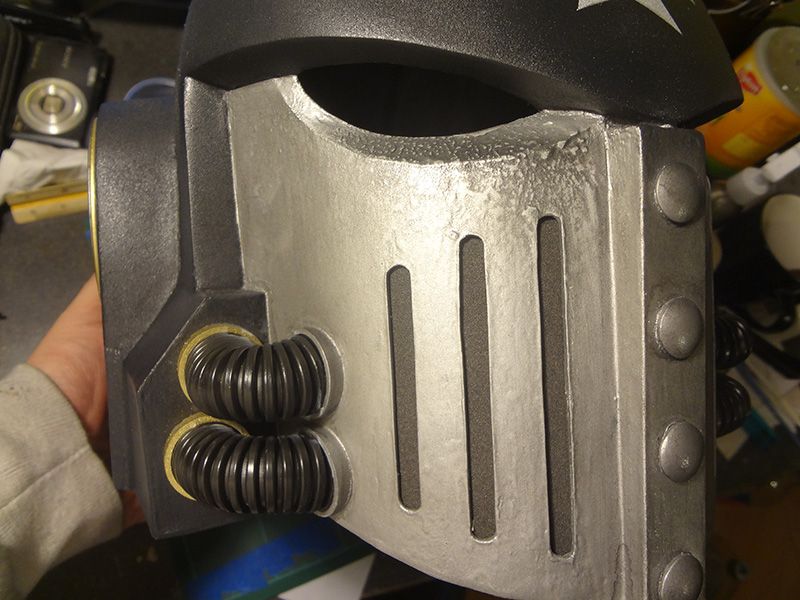

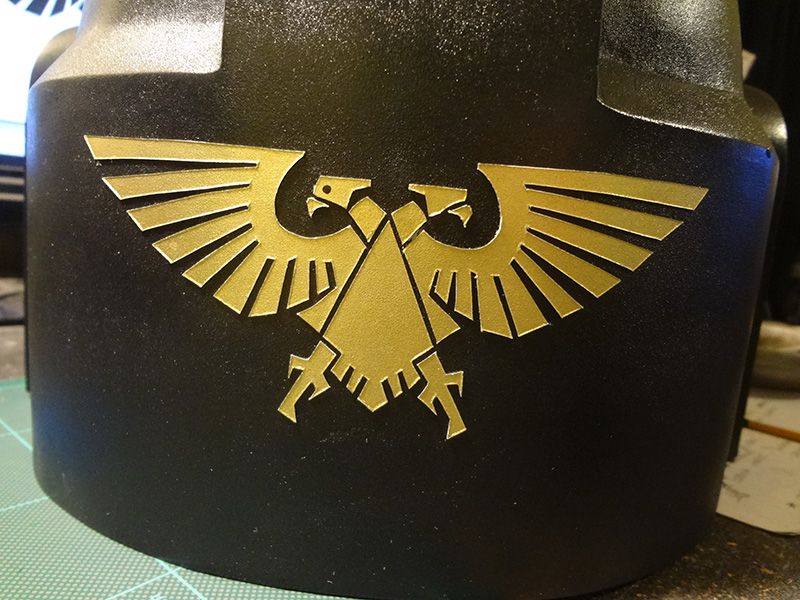

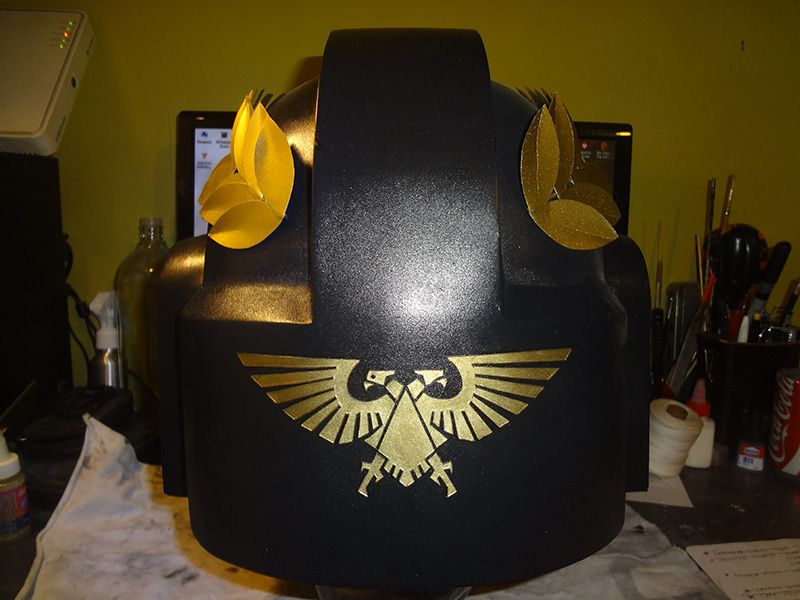

next to add the details: the "ears" that i made from the lid of some cans and made a ring of wire around them, this ring, and the pipe connectors in the helmet were painted gold and then weathered a little. made a stencil for the cross, cut out the eagle logo so it look raised, also painted in gold, glued some foam behind the faceplate and crest vents, and added the hoses

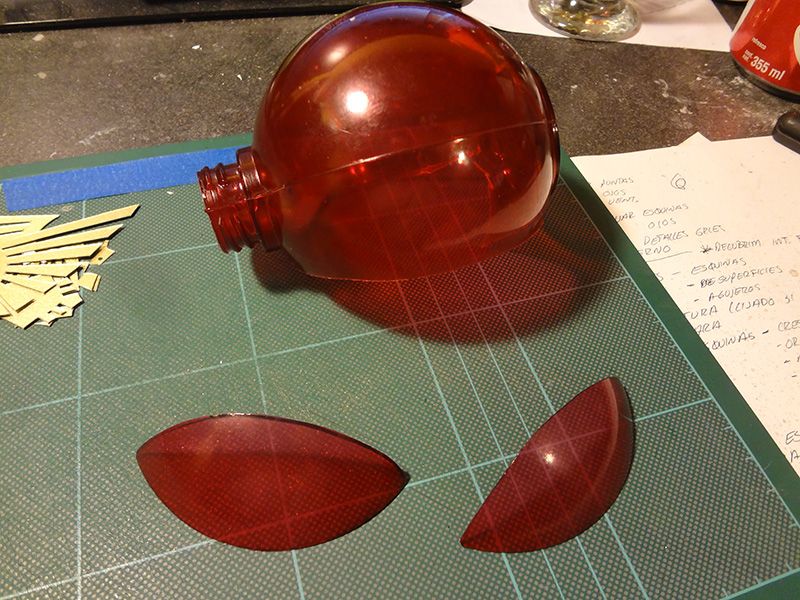

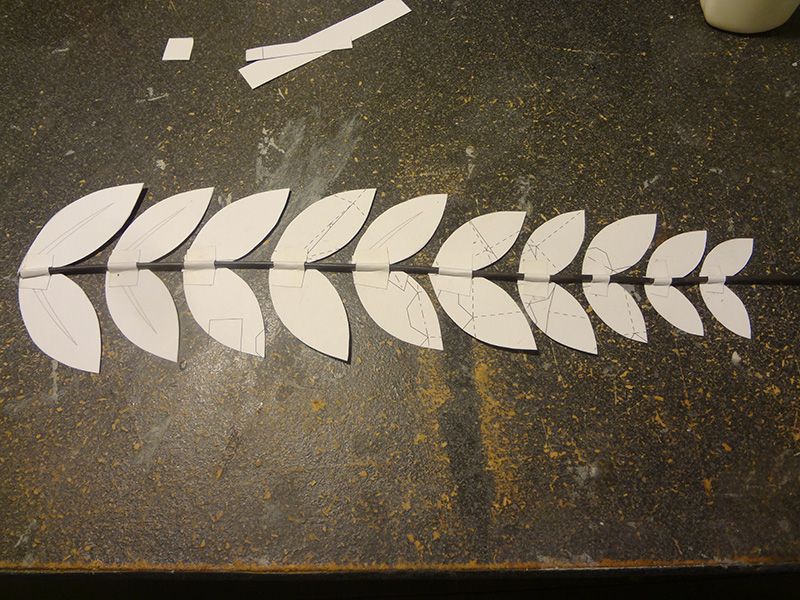

I wanted to add the laurels, but didn't want them just to be painted, so i made ones with wire and card stock, tested, added more leaves,  and when i was happy with the result i painted them, for the lenses i cut a red plastic bottle, and added a thin edge to the cross

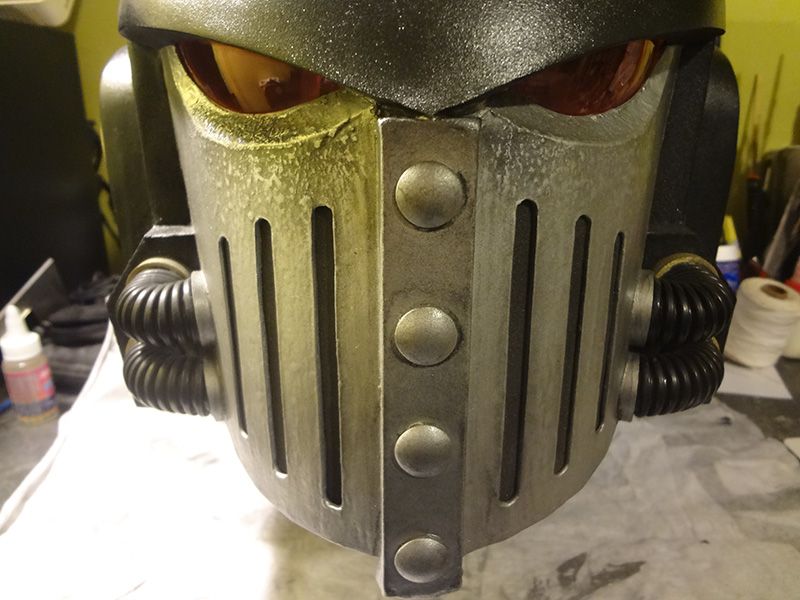

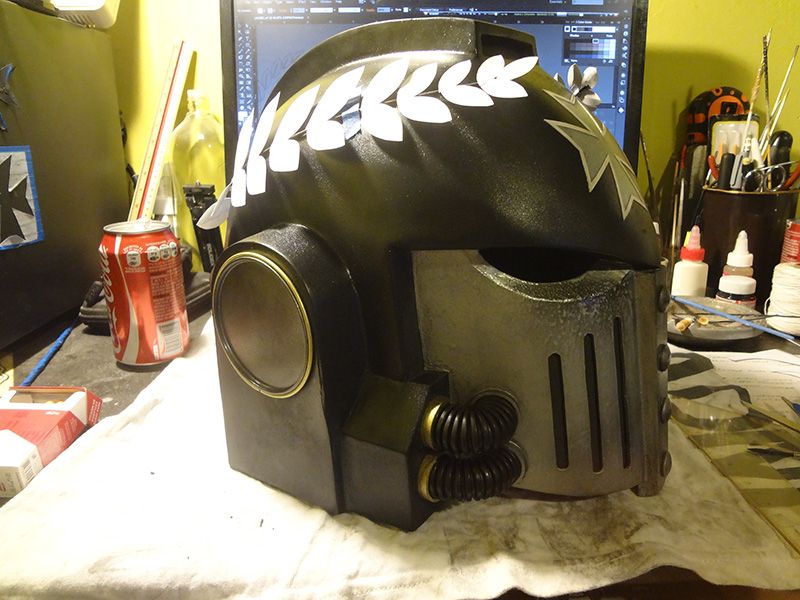

to finish, attached the lenses, the laurels, the skull of the cross, weathered the faceplate a little more, and a few coats of clear coat spray





and of course:




Well, it was a very fun build, and I'm going to do more, for now maybe just helmets, since i don't have much space in the house.

Hope you like it  :)

Offline Rraijjar

  • Company Champion
  • *****
  • Posts: 513
  • :
Re: Black Templar's helmet completed
« Reply #1 on: January 05, 2015, 06:35:53 AM »
That sir... looks awesome! :o 8)

Offline budaboy

  • Scout
  • **
  • Posts: 86
  • :
Re: Black Templar's helmet completed
« Reply #2 on: January 05, 2015, 01:58:21 PM »
cool!!!
 looks real nice

Offline Daeouse

  • "And what have we learned?"
  • Company Champion
  • *****
  • Posts: 1124
  • :
  • "And what have we learned?"
    • http://daeouse.deviantart.com
Re: Black Templar's helmet completed
« Reply #3 on: January 10, 2015, 12:41:01 AM »
VERY nice! 8)

Offline Jarigorri

  • Scout
  • **
  • Posts: 63
  • :
  • Neophyte
Re: Black Templar's helmet completed
« Reply #4 on: January 10, 2015, 07:46:02 AM »
I love it !

Offline prev

  • Death Company Marine
  • Company Champion
  • *****
  • Posts: 678
  • :
  • Fighting the Black Rage
Re: Black Templar's helmet completed
« Reply #5 on: January 11, 2015, 02:58:49 AM »
As I said on FB - I'll have it.

Good job sir.
Treat us with honour, Brothers. Not because we will bring you victory this day, but because our fate will one day be yours...

Offline bufoncosmico

  • Initiate
  • *
  • Posts: 5
  • :
  • Neophyte
Re: Black Templar's helmet completed
« Reply #6 on: January 12, 2015, 02:22:34 AM »
thanks guys!

Offline gringo

  • Initiate
  • *
  • Posts: 37
  • :
Re: Black Templar's helmet completed
« Reply #7 on: January 12, 2015, 02:20:28 PM »
Great work!

I see your first version was helmet with some battle damage right? Why did you abandoned this idea?

Offline ViolentDream

  • Marine
  • ***
  • Posts: 253
  • :
  • White Scars Primaris Lieutenant
Re: Black Templar's helmet completed
« Reply #8 on: January 16, 2015, 10:55:55 PM »
That's a kickass helmet!  Nice job!
"There is only one unforgivable lie. That is the lie that says, 'This is the end, you are the conqueror, you have achieved it and now all that remains is to build walls higher and shelter behind them. Now, the lie says, 'the world is safe.'
All emperors are liars." - Jaghatai Khan

Offline bufoncosmico

  • Initiate
  • *
  • Posts: 5
  • :
  • Neophyte
Re: Black Templar's helmet completed
« Reply #9 on: January 17, 2015, 12:52:05 AM »
Thanks!

Great work!

I see your first version was helmet with some battle damage right? Why did you abandoned this idea?

Well, to be honest, was a mistake, i painted over it by accident,  >:( but i didn't wanted to do it again, so i just covered it all.

Offline Inquisitor Horvath

  • Scout
  • **
  • Posts: 54
  • :
  • Mutated, heretical, xenos hunter
Re: Black Templar's helmet completed
« Reply #10 on: December 05, 2017, 01:05:04 PM »
It's always sad when you paint over hard work :(

Offline Inquisitor Horvath

  • Scout
  • **
  • Posts: 54
  • :
  • Mutated, heretical, xenos hunter
Re: Black Templar's helmet completed
« Reply #11 on: January 25, 2018, 01:15:21 PM »
Where can I find the pep file for this helmet?
